CT36-1

CT36-1 is a self-adhesive label primarily designed for use on wine bottles with metallic capsules.

Specifically designed to work with a metallic capsule or screwcap; without requiring a any form of conventional tag antenna.

They are very simple to apply; however, for the optimum results it is best to follow the instructions in the Application Guidelines.

CT36-1 can also be used for perfume, or some liquor bottles where the label can bridge between the bottom of the capsule, or closure and the fluid level.  For liquor bottles, CT58-2 is often a better choice –

Features

• Full compatibility with RAIN-compliant Gen2 and Gen2x readers
• A range of about 7 metres with a handheld reader from the front of the bottle with the tag at the back. For a fixed 2W reader, 10 metres is achievable
• Can be supplied as normal rectangular labels, or as ‘lollipops to facilitate correct positioning of CT36-1 with retro-fit, hand application to bottles
• can be fitted covertly under the capsule with no effect on range

Benefits

• Ideal for Use Cases including supply chain, EAS and inventory control because CT36-1 can be read from the sides or above the bottle
• No end-on nulls creating angles where tags cannot be detected, such as with flag tags and other RAIN UHF dipole tags.

Short label length for easy machine application

CT58-2

CT58-2 is a self-adhesive label designed for achieving long read ranges (>4 metres) in any orientation for bottles with metallic or plastic capsules, or bottles with no capsule at all.

Works well for bottles with any capsule length

Features

• Full compatibility with RAIN-compliant Gen2 and Gen2x readers


  CT58-2 shown in covert mode

• Can be supplied as normal rectangular labels, or as ‘lollipops to facilitate correct positioning of CT36-1 with retro-fit, hand application to bottles
• can be fitted covertly under the capsule with no effect on range
• Overall length <100mm to fit standard Zebra Printers for bar code bar or over-printing



Benefits

• A universal, ‘one-tag-fits-all ’ for screwcap & corked still wines in each ITU Region: USA, Europe & China

CT95-15

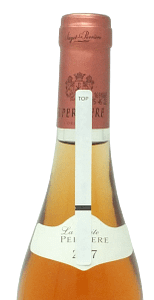

CT95-15 is a self-adhesive label designed for reading bottled products inside Smart Cabinets for unattended vending, of bottled products and food consumables e.g. sandwich packs/desserts.

Features

• Works effectively on any glass or plastic bottle type with or without metallic capsules
• White space available for over-printing with bar codes including tag data

Benefits

• Full compatibility with RAIN-compliant Gen2 and Gen2x readers

Overall length <100mm to fit standard Zebra Printers for bar code bar or over-printing
